Delivering on the promise of
solid-state technology

Legacy lithium-ion batteries are approaching the limits of their possible energy density just as demand for higher performing energy storage surges. QuantumScape’s groundbreaking technology is designed to overcome the major shortfalls of legacy batteries and brings us into a new era of energy storage with two major innovations — an anodeless architecture and proprietary solid ceramic separator — that improve energy density, charging speeds and safety.

Energy

Significantly increases volumetric and gravimetric energy densities by eliminating graphite/silicon anode host material

Fast Charge

Enables <15-minute fast charge (10-80%) by eliminating lithium diffusion bottleneck in anode host material

Life

Extends useful lifetime by eliminating capacity loss at anode interface

Safety

Eliminates organic separator and replaces with a solid-state separator that is nonflammable and noncombustible

Cost

Lowers cost by eliminating anode host material and manufacturing costs

Energy Density

QuantumScape’s technology platform is designed to pair with a variety of cathode chemistries — with the potential to significantly improve the energy densities of today’s Nickel Manganese Cobalt (NMC) and Lithium Iron Phosphate (LFP)-based battery cells. This capability enables optimization for diverse energy storage applications and gives our platform the flexibility to benefit from future cathode chemistry advancements.

Sources: Cell energy densities for commercialized chemistries based on Ding, Y. et al. (2019) and Yang, X. et al. (2021); Li-metal cell densities based on QS estimates.

Energy Density

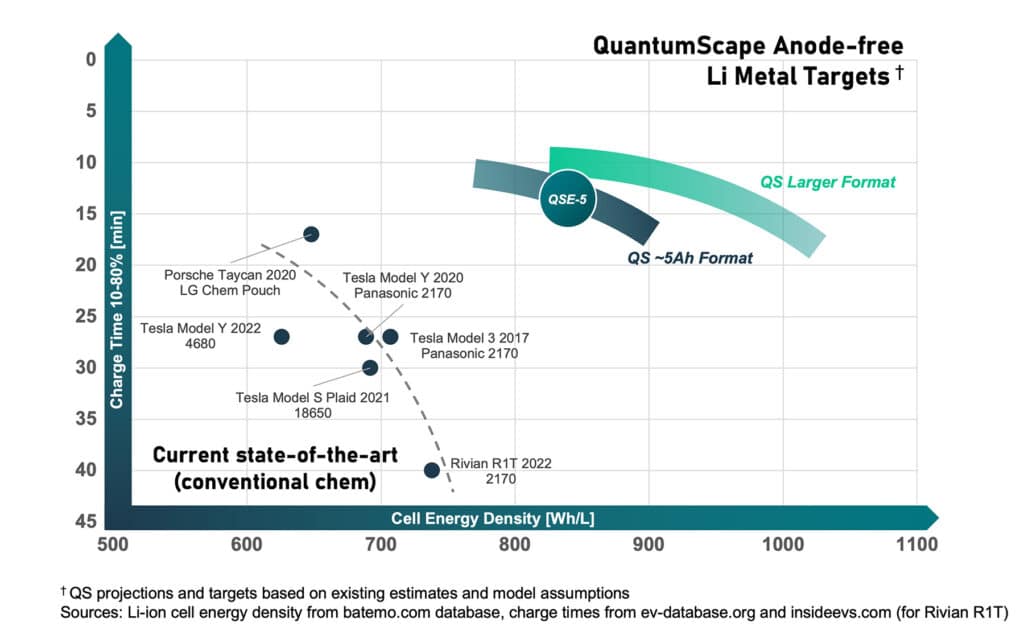

QuantumScape’s performance data demonstrates that our proprietary, patented solid-state separator can resist dendrite formation at automotive rates of power.

Sources: Cell energy densities for commercialized chemistries based on Ding, Y. et al. (2019) and Yang, X. et al. (2021); Li-metal cell densities based on QS estimates.

Solid-State FAQs

Questions about our solid-state battery tech? We’ve got answers.

Q: What is a solid-state lithium-metal battery?

A: A solid-state lithium-metal battery is a battery that replaces the polymer separator used in conventional lithium-ion batteries with a solid-state separator. The replacement of the separator enables the carbon or silicon anode used in conventional lithium-ion batteries to be replaced with a lithium-metal anode. The lithium metal anode is more energy dense than conventional anodes, allowing the battery to store a greater amount of energy in the same volume. Some solid-state designs use excess lithium to form the anode, but the QuantumScape design is ‘anode-free’ in that the battery is manufactured anode free in a discharged state, and the anode forms in situ on the first charge.

Q: What are the main benefits of solid-state lithium-metal batteries compared to lithium-ion batteries?

A: Relative to a conventional lithium-ion battery, solid-state lithium-metal battery technology has the potential to increase the cell energy density (by eliminating the carbon or carbon-silicon anode), reduce charge time (by eliminating the charge bottleneck resulting from the need to have lithium diffuse into the carbon particles in conventional lithium-ion cell), prolong life (by eliminating capacity fade that results from the unwanted chemical side reaction between the carbon and liquid electrolyte in conventional lithium-ion cells), improve safety (by eliminating the combustible organic porous separator and organic anolyte material in conventional cells) and lower cost (by eliminating the anode materials and manufacturing costs).

Q: What is the potential for QuantumScape battery technology to increase the range of electric vehicles?

A: The higher energy density of QuantumScape solid-state lithium-metal cells, at our commercial target of 800–1,000 Wh/L (as of Dec. 2023), could translate to more range in the electric vehicle, depending on the vehicle design. For example, a vehicle that gets ~350 miles of range on a single charge using one of today’s leading conventional lithium-ion cells with an energy density of ~700 Wh/L, could get between 400 and 500 miles of range using QuantumScape cells.

The actual range attainable by a car depends on many factors, and vehicle designers may choose to optimize for range, cost, space, or other factors, and these design choices will impact the range of the vehicle.

Q: Is QuantumScape truly solid-state? Is there a liquid catholyte?

A: Most of the benefits of solid-state stem from the ability to use lithium metal as the anode. Using lithium-metal as the anode requires a solid-state separator that prevents dendrites and does not react with lithium. Once you have such a separator, you can use lithium-metal as the anode and realize the benefits of higher energy density, faster charge, and improved life and safety. QuantumScape has developed such a separator based on its proprietary ceramic material and uses a pure lithium-metal anode with zero excess lithium to deliver the above benefits. QuantumScape couples this solid-state ceramic separator with an organic liquid electrolyte for the cathode (catholyte). The ceramic separator also enables our battery design to use a customized catholyte material, better suited for the voltage and transport requirements of the cathode. The requirements for the ceramic separator are different from that of the catholyte. The former requires dendrite resistance and stability to lithium-metal. The latter requires high conductivity (given the thicker cathode), high voltage stability (given the cathode voltage), and the ability to make good contact with the cathode active material particle. It is difficult to find materials that meet both these requirements and attempts to do so often result in a material that meets neither requirement well, resulting in cells that can fail from dendrite formation while also not providing sufficient conductivity to run at high power.

Q: What are the weight and volume benefits of QuantumScape lithium batteries?

A: Specific energy is the term physicists use to refer to gravimetric energy density, i.e., Wh/kg, whereas energy density is the term they use to refer to volumetric energy density. A cell with higher specific energy will save weight in the batteries themselves and provide additional weight savings in the battery system. Less weight in the car from a lighter battery system can then reduce chassis weight, tires, brakes, and more, which can improve vehicle performance and efficiency.

A cell with higher volumetric energy density will reduce the size of the modules and pack. This, too, has follow-on benefits at the system level, requiring fewer connectors and cables, and allowing for safe design of the vehicle with more room for crumple zones, as well more comfort with more room for passengers and cargo.

QuantumScape’s solid-state lithium-metal battery technology is designed to provide both high specific energy and high energy density.

Q: What exactly is different about QuantumScape's separator material?

A: The QuantumScape separator material is a ceramic capable of meeting the key requirements of high conductivity, stability to lithium metal, resistance to dendrite formation, and low interfacial impedance. These are the key requirements to make a lithium-metal anode, which in turn enables high energy density, fast charge, and long life. The ceramic itself is non-combustible, making it safer than conventional polymer separators, which are hydrocarbons and so can burn. The formulation of QuantumScape’s material is proprietary, but it uses earth abundant materials with a continuous-flow manufacturing process, which we believe will make it cost-effective at commercial volumes.

Q: If there is a car accident, how robust is the separator?

A: Ceramics in general are stable to very high temperatures, and our ceramic separator is no exception. In addition, even at very high temperatures, it does not burn (since it is already oxidized), therefore we believe that it will provide a thermally stable barrier between the anode and cathode. Our architecture reduces the fuel content of the cell by removing the conventional polymer separator, graphite and anolyte. Note that we have not completed the development of our multilayer commercial battery cell, and so have not yet conducted safety tests on commercial target batteries and packs.

Q: Has QuantumScape shared cycle life data and if so, what is it?

A: Our 24-layer A0 prototype cell has completed more than 1,000 full charge-discharge cycle equivalents with more than 95% energy retention. If we can generate the same level of performance in our commercial battery cells at our target energy density, this would be the equivalent of driving ~300,000 miles and still maintaining 95% of the original energy retention.*

The company has a lot of work remaining, including on improving reliability, integrating key functionality, and scaling up production, among other things, before these cells can be ready for commercial production (as of Dec. 2023).

*This mileage equivalent assumes the vehicle uses a battery pack that gets ~300 miles of range on a single charge.

Q: How does QuantumScape think about the ability for other technologies to coexist? What else is out there that can have a place in the market?

A: Solid-state lithium-metal cells offer benefits on many major performance dimensions so we expect they will be very popular with the world’s automakers. However, if we are successful in our development efforts, we believe that the potential demand for our batteries will far outstrip our ability in the short term – and indeed any single vendor’s ability — to produce them. So, we do expect there will be multiple technologies co-existing in the industry for some time to come. When one considers other markets such as stationary storage for the grid and consumer electronics, the market is even bigger, so the world will need all its battery factories producing at full capacity to meet the potential future demand.

Q: What materials are your competitors utilizing to try to enhance EV battery performance?

A: Over the years, people have tried to develop solid-state batteries with materials such as polymers, sulfides, oxides, liquids, and composites (which are a mix of other materials, such as polymers and ceramics). We are not aware of any of these efforts being successful on the metric of delivering long cycle life at high rates of power without requiring elevated temperatures. Most importantly, to our knowledge none of the competing approaches have presented data showing they are able to prevent dendrites (lithium growths that short circuit batteries) at room temperature and automotive current densities. To date, the principal way that these competing approaches have avoided dendrites is by compromising test conditions (i.e. low power, short-cycle life, raising the temperature, etc.). It took us over 10 years, over two million tests, and over $300 million to get to the level of performance we have demonstrated, so we believe this is a very hard problem and will be difficult for competitors to solve. During our development process we also created over 200 patents and applications to protect our unique approach.
